The configuration of the computer used for scanning enables documents to be sent from the scanning module to the Omnimed EMR. A configuration must be made for each workstation used for scanning.
⚠️ Important notes
- Contact your technical support to configure the scanning module. Installation can also be carried out by Omnimed by appointment in accordance with our billable services policy.
- Each user must access the Scan Module with his or her own login and password used to access the Omnimed web application.
- For performance purposes, documents added to the Scanning Module are hosted locally on the user's computer and do not transit through Omnimed servers. The scanning process must therefore be completed from start to finish by the same user, on the same computer.
Steps to follow
0. Validate requirements
- For information on the hardware required for scanning with Omnimed, please refer to the sections Computer used for scanning and filing and Internet link in the article System requirements for using Omnimed.
- Computer administrator rights: During installation, you must ensure that you have an account with administrator rights.
1. Installation file
Click on this link to download the scanning module installation file.
A download notification will appear in the top right-hand corner of your browser.
⚠️ Note that a warning message may appear on your screen. Only the Do not execute option will be presented. You must click on Additional information to access the Run anyway option. We assure you that the installation is safe, so you can continue.
Go to the Downloads folder in File Explorer and double-click on the file Omnimed_classeur_inst.exe
To create a shortcut on the desktop of all users, right-click on the installation file and select the Run as administrator option to run as administrator.

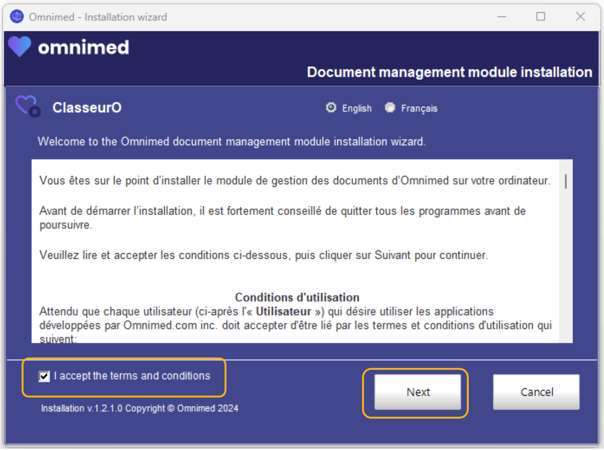

2. Terms and conditions
Read the terms and conditions displayed in the Document management module installation window, then click on I accept the terms and conditions and Next.

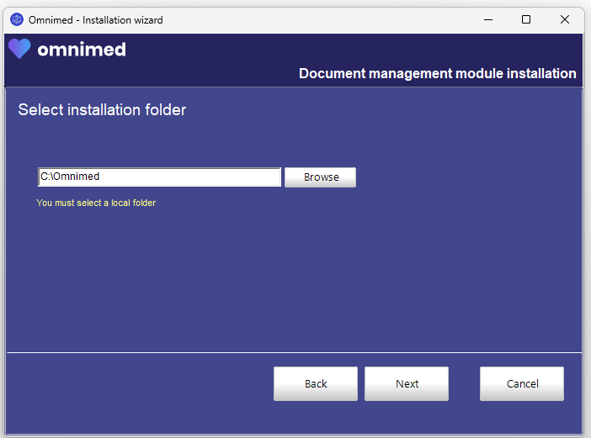

3. Instalation file
Select the location of the installation file. The default is C:\Omnimed. Click on Next.
⚠️ You must select a local folder, not a folder on a shared drive.

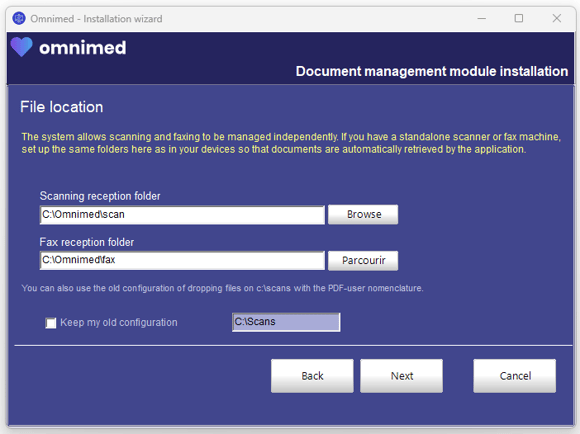

4. File location
Select the file location for the Scan Recovery Folder and Fax Recovery Folder (if applicable).
By default, these are C:\Omnimed\Scan and C:\Omnimed\Fax
Click on Next.

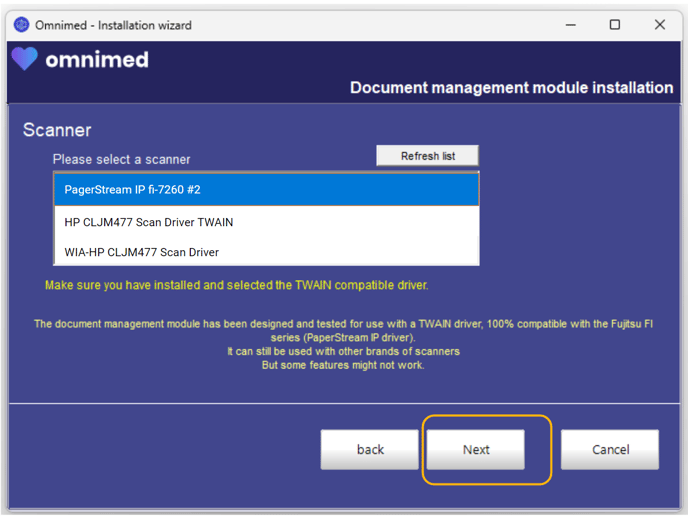

5. Scanner
Select a scanner. If necessary, click on Refresh list. Click on Next.
⚠️Make sure you select a compatible TWAIN driver (not WIA).
The scan module has been designed and tested for use with a TWAIN driver and is compatible with Futjitsu's F1 series (PagerStream IP driver).

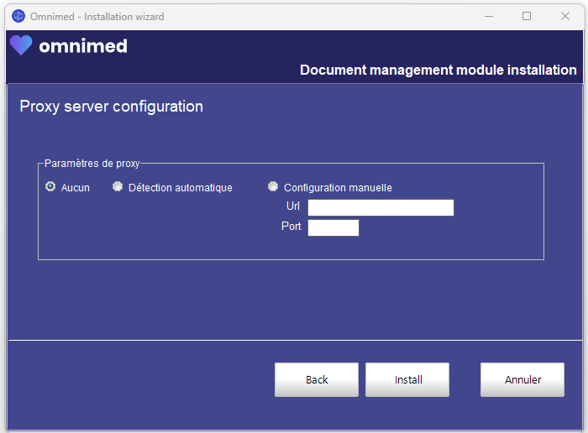

6. Setting up a proxy server (optional)
The basic installation of the scan module does not require a proxy server. If applicable, you can modify the proxy settings by clicking on Automatic detection or Manual configuration and enter the URL and Port.
7. Finalize installation
Start installation by clicking on the Install button.

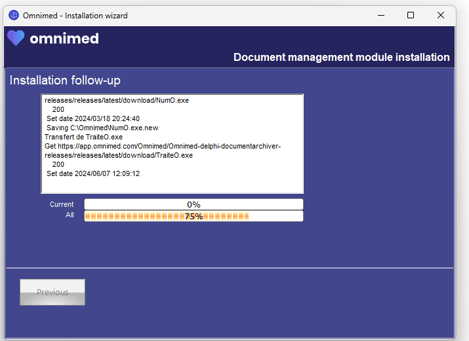

Installation progress: A progress bar shows the percentage of installation. Installation may take a few minutes.
The installation of the module is complete when the Global progress bar reaches 100%.

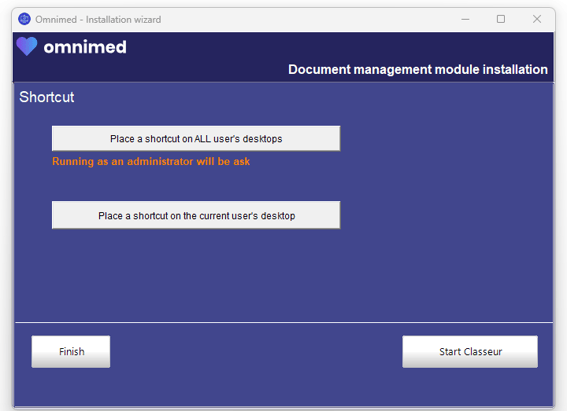

9. Shortcut
Select an option for creating the shortcut:
- Place a shortcut on the desktop of ALL users (only possible if the installation was run as administrator)
- Place a shortcut on the current user's desktop
A confirmation message appears once the shortcut has been created.
⚠️ Make sure you exclude the c:\omnimed directory from your antivirus software.

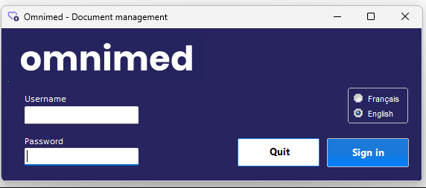

10. Start the scanning module
Click on the Start button to open the scan module. The user must now follow the steps to connect to the module.
